| Product Name | Feiyu Pocket 3 Stabilized Camera |

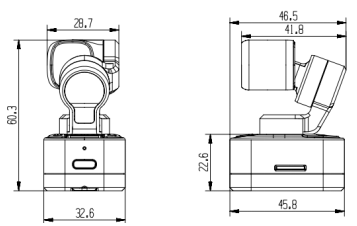

| Dimensions |
46.5*32.6*60.3mm |
| Material of main body | Aluminum Alloys and PC |
| Weight | About 86g (Built-in battery, not include other accessories) |
| Water-proof | NO |
| Controllable Range | About 1.5h (Using 18W fast charger) |
| Operating Temperature |
Tilt: -95° to +50° Roll: ±45° Pan: -220° to +40° |
| Angular Vibration Range | ±0.005° |
| Max. Speed | 180°/S |
| Display Screen | 0.42 inches/OLED/72*40 |
| Wi-Fi | 2.4GHz, bandwidth: 20MHz |
| App | Feiyu Cam |
| Battery |
Capacity:280mAh Type:Lithium Cell Power:2.072Wh Voltage:7.4V Operating Temperature:0℃~+40℃ |
| Battery Life | 60min(1080 30fps , main body) |
| Charging Time |
1.5h(5V/2A charger) |
| Camera Parameters |
Image Sensor:1/2.3″CMOS Effective pixels:12 million Lens:FOV：130°，aperture（F）: 2.0 ISO Range:100~3200 Equivalent Focal Length:16mm Electronic Shutter Speed:1/8000~16s Max Image Size:4000*3000 Photo Formats:JPG/JPG+DNG Photo modes:Photo, Panorama, Static Timelapse, Motion Timelapse Video resolution:4K 3840*2160@60/50/48/30/25/24fps ｜｜ 2.7K 2720*1520@60/50/48/30/25/24fps ｜｜ 1080P 1920*1080@120/60/50/48/30/25/24fps Video Formats:MOV、MP4 Vide Modes:Video, Timelapse, Slow Motion Max Variable Bit Rate for video:4K@60 fps, Max. Bit rate is 120Mbps Audio Output:48KHz, AAC |
| Supported File Formats |
FAT32, exFAT |
| Capacity SD Cards |
Micro SD，maximum support 512g memory card(recommended to use U3 and above high-speed cards) |
| Micro SD card installation |
Insert MicroSD Card An UHS -ⅠSpeed Grade 3 (U3) rating microSD card (equipped by user) is required. Please format the microSD card with Feiyu Pocket 3 when insert it at the first time. It is recommended to use gimbal to format the Micro SD card before storing data. |
| Gimbal overload protection | Overload protection: When the motor continuously output with high power caused by incorrect operation or machine abnormality, the machine will enter the overload protection. Tap the Mode button to restore |
| Charging tips |
Connect USB-C cable with charging port to charge. We recommend that you charge your camera at least once a month.  |

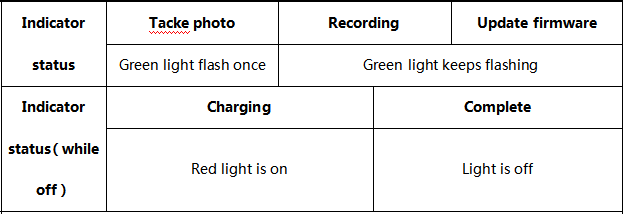

| Indicator light instructions |
 |
| Firmware update |
Turn on Feiyu Cam App, enter [Home] page, and tap the “...” on the top-right corner
of the user information bar, choose “Upgrade Feiyu Pocket firmware”, make sure
your mobile web works properly, insert SD card first, then start updating. It takes about
3 minutes to update. |
| Extended Ports |
Bottom of the gimbal: Dovetail slot, which can be installed with accessories such as remote control handle and extension bar;
Left side: SD Card slot, allows camera to save files, upgrade firmware;
Back of the gimbal: USB-C port, for charging and reading SD card data. |

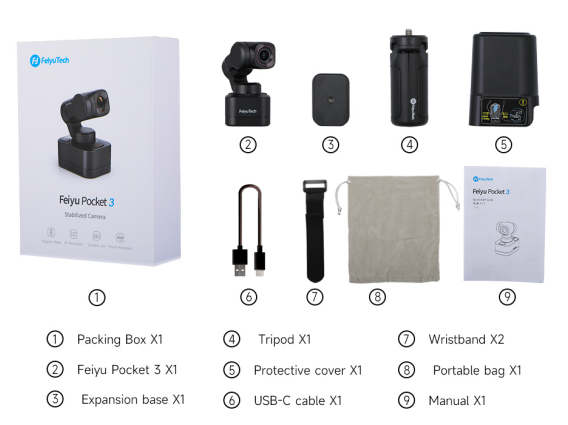

| Accessories |
Feiyu pocket 3 main body*1, Expansion base*1，Tripod*1，Protective cover*1，USB-C cable*1，Wristband*2，Portable bag*1. |
| Optional Accessories |
Feiyu Pocket 3 Remote handle Feiyu Pocket 3 Extension bar Feiyu Pocket 3 Smartphone holder Feiyu Pocket 3 Protective cover Android card reader iOS card reader SD Card |
