Product Name Feiyu SCORP-Mini 2 3-Axis Handheld Gimbal for Camera
Battery Capacity 2500mAh, built-in battery cannot be removed, charge it via the USB-C port which below the multifunction knob,support all the normal charger and quick charger which charging power≤18W
Operating Voltage 6.8V-8.4V
Theoretical Battery Life 10h (Experimental conditions: Payload about 1000g, balanced, in Pan Follow mode on standby.)
Charging Time <2h (Using 18W fast charger)
Materials In Main Body Synthetic macromolecular resin, aluminum alloy
Weight About 852g/1.878 lb (Not including tripod and other accessories, as well as the camera)
Payload About 1200g/2.65 lb (well balanced)
Water-Proof Grade Not Water-proof

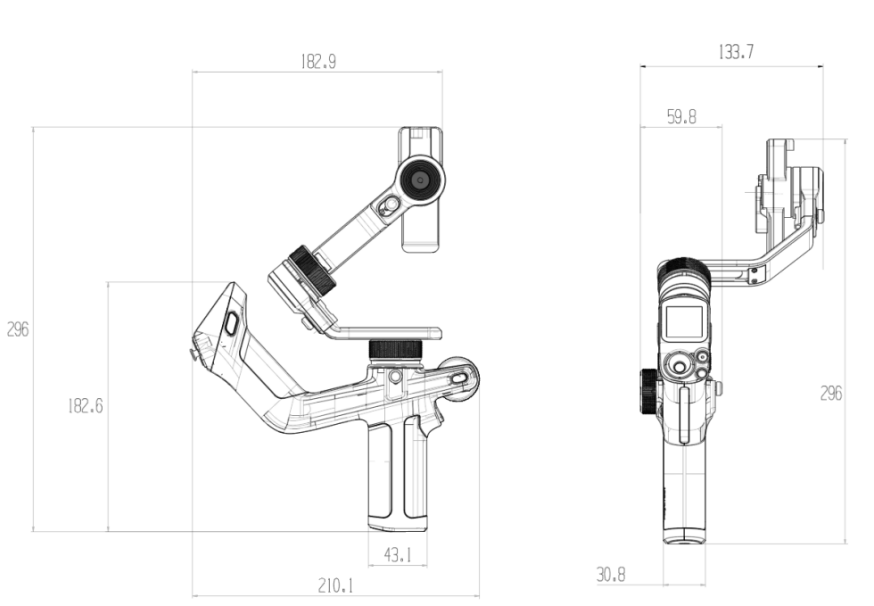

Dimensions 210.1*133.7*296mm(Gimbal balancing position)

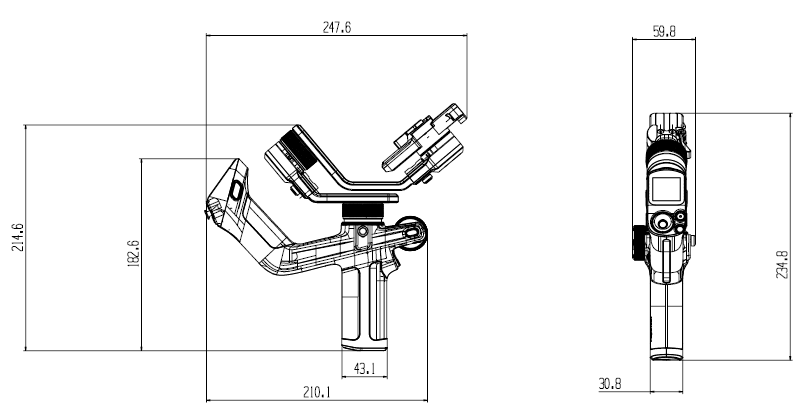

247.6*59.8*234.8mm(Gimbal folded position)
Compatible Cameras/Smartphones Mirrorless camera and pocket camera (Sony, Canon, Nikon, Panasonic,etc. Check Camera Compatibility Lists for more details), action camera like GoPro, and smartphone (Width: 52mm~88mm, thickness: ＜9.5mm)
AI Tracking Built-in AI tracking module, enabling tracking and gesture control functions without the need for an app or accessories.
Operating Temperature -10~45℃
Rotatable Range Tilt: 318°(With limitation)
Roll: 320°(With limitation)
Pan: 360°(Unlimited)
Controllable Range Tilt: +137°~-60°
Roll: +40°~-40°
Pan: 360°(Unlimited)

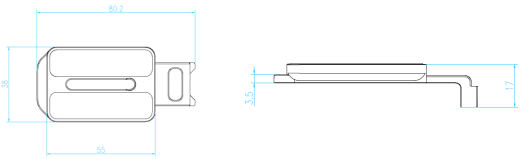

Quick Release Plate Quick release plate (80.2x38x17mm) is compatible with ARCA quick release system. Can be removed from the gimbal together with the camera, and fast switch between popular quick release systems without re-assembling the camera.
Follow Mode
①PF: Pan follow, only the pan axis follows the movement of user's hand
②PTF: Pan and tilt follow, where both the pan and tilt axes follow the movement of user's hand, but roll axis does not
③FPV: Pan, tilt and roll follow, where all 3 axes follow the movement of user's hand
④Lock: All 3 axes do not follow the movement of user's hand, gimbal keeps the direction of the camera fixed
⑤FFW: flash follow, where all 3 axes follow the movement of user's hand in high follow speed
APP When mounting mirrorless camera, pocket camera or action camera on gimbal for shooting, please use “Feiyu SCORP” App.
When mounting smartphone on gimbal for shooting, please use “Feiyu ON” App.
Both Feiyu ON and Feiyu SCORP can update firmwares for gimbal.
How To Control The Camera/Smartphone While connecting gimbal and cameras with cable (Standard accessories for SONY, CANON, NIKON, Panasonic), users can control picture-taking/recording with shutter button and set aperture, shutter, ISO and other camera parameters (see Camera Compatibility List for more). Alternatively, when connected to the camera via Bluetooth, users can use the shutter button to control picture-taking/recording for supported camera models (see Camera Compatibility List for more).
After connect gimbal with Feiyu ON App via Bluetooth, the gimbal can directly control Feiyu ON to shoot (If the shutter of original camera and third party camera App can be controlled by volume button,then SCORP-Mini can control it too).
Motor Power Auto Tune Auto Tune motor power is available to the App or Touch Screen. Gimbal auto tune the motor power according to the camera you install. Auto Tune operation: Enter the motor power setting through touch screen, and tap Auto Tune, then put gimbal on the table until the display prompt calibration complete.
Gimbal will vibrate slightly while Auto Tune to weigh the camera, it’s a normal phenomenon.
Extended Ports At the bottom of the handle: 1/4 inch thread hole*1, which can mount Tripod;
Below the multifunction knob: Type-C charging port*1;
In front of slider: M6 thread hole*1, for installation of focus motor support rod;
In front of fixed plate: 1/4 inch thread hole*1, which can mount third party accessories;
In front of quick release plate: 1/4 inch thread hole*1, for installation of lens holder;
On the top of tilt axis: 1/4 inch thread hole*1, which can mount third party accessories;
In front of tilt axis:
Type-C extension port*1 to connect focus motor and other accessories;
Type-C camera control port*1, also supports charging for shooting devices compatible with the USB power supply protocol;
