Main Features
◆The payload is up to 3.5 KG，which can support all kinds of DSLR and part of cinema cameras.
◆Made of Aviation Aluminum-alloy, strong in construct and light in weight.
◆Remote control with oversized touch screen can set up all the shooting parameter. With 15 meters control distance, You can monitor and check all working status
from a distance, and start intelligent shoot with pre-set templates.
◆Powerful Remote control to control the capturing, recording , focus(half press), follow focus with external AFK II, and directly set up timelapse, auto rotation, 9 square panorama and auto 180degree/ 360 degree panorama, working with intelligent MCU power to calculate remaining time and total duration of whole shooting, total length of the ,current and total photos, and control QING to auto finish the whole shooting.
◆Auto rotation setup feature make it perfectly use at auto shooting at fixed position or VLOG for single man.
◆9 square panorama feature make it easily auto take 3*3 wider panorama with pre-set template.
◆Auto panorama with 180degree and 360 degree template to get quick panorama.
◆Cable control the capturing, recording , follow focus and zooming with external AFK II, stable and security.
◆QING designs two quick release system for camera and battery to  make the mounting and usage more easily.
◆Each security motor lock for tilt axis and battery to get secure mounting.
◆Comes with gradienter on pan axis to get level state in real time.
◆Reserve 3pcs USB2.0 port and 1pcs USB C port for follow focus / cable control to get more flexible application.
Comes with 3/8inch thread hole to directly mount on professional tripod , slider rail and other accessories.
Max. Payload 3.5kg(7.71lb)
Compatible cameras Some compatible cameras as listed:
Sony α9, α7R IV, α7M III, α7SII, α7II, α6500, α6400, α6300, RX100 IV, etc.
Canon EOS R, 1D X Mark II, 5D Mark III, 5D Mark IV, 6DMark II, 7D, 80D,6D,etc.
Nikon D850, Z7, Z6, D7500,etc.
Panorama GH5s，GH4,etc.
Net weight QING：1340g(with battery)，Remote Control：316g(with battery)
Battery QING：Integrated quick release battery *1，2200mah, 14.8V, 32.56Wh
Remote Control： 18650 rechargeable*1，2200mah, 3.7V, 8.14Wh
Battery time 5 .5hours for consistent working， 8 hours for standby .
Charge battery QING：Charge the separate battery with USB2.0 to USB C cable.
Remote Control：Charge the remote with USB2.0 to Micro USB cable
Charging hours QING： 2 hours(with 5V/3A charger, Quick charge is forbidden).
Three indicators is all on after fully charged.
Remote Control：Fifty minutes(with 5V/3A charger, Quick charge is forbidden).
The battery icon is full displayed after fully charged.
Material Aviation Aluminum-alloy

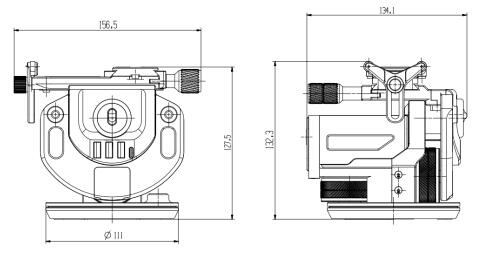

Dimensions
134mm*157mm*133mm
Waterproof NO
Rotatable Range Tilt: 120°
Pan：360°(Unlimited)
Rotational Speed Tilt:   min 8°/S, max140°/S
Pan：min 12°/S, max165°/S
Mounting camera Put QING at flat place, and keep tilt axis level with the ground, lock tilt motor, Remove Arca quick release, mount it on the camera, loose the security screw, Install the ARCA quick release plate, and tighten security screw.
Gimbal Balance Unlock the tilt motor, loose thumb screw Slide the slide arm to balance, and tighten the thumb screw after the balancing is completed.
Power on/off QING: press the power button and release it when the battery indicator and function indicator turn on together and hear the tone. Long press again to power off.
Remote Control：Long press the power button, release it when the touch screen shows FULL FY. Long press again to power off.
Working mode Pan follow：Tilt direction is fixed, the camera follows the movement of pan axis.
Lock mode：Tilt and pan direction is fixed，and the lens stay at required direction.
Reset：Go back to pan mode, tilt and pan axis to default position.

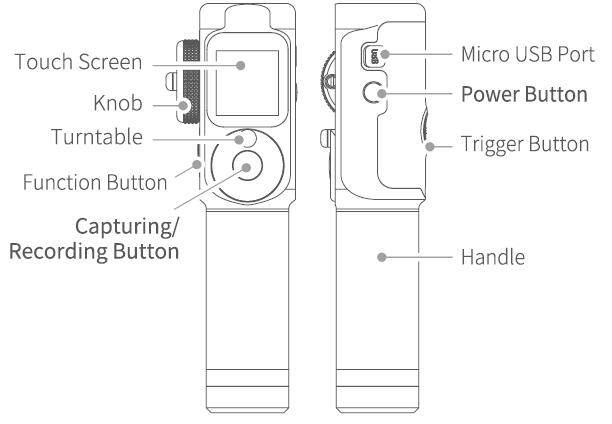

Function button operation(Remote Control)
★ Power button：
Long press：Power on/off
Single tap at homepage：Lock/Unlock touch screen
Single tap at other page：Return to homepage
★Turntable：
1. Control pan movements
2. Adjust the parameter
★Capturing/Recording Button
Control the capture/recording of camera with control cable connection.
1.Half-press：Focus
2.Single tap：Control the capture
3.Long press：Control the recording
★Trigger button：
1.Double click：Reset the gimbal
2.Single click：Exit current working mode, back to homepage.
★Knob：
1.Control the movement of tilt axis (clockwise or anticlockwise）
2.Select the parameter
★Function button：
1.Single tap: Switch sensitivity - fast/slow
Double tap: Switch control object between external follow focus / tilt axis.
Connect the camera Plug control cable in USB C/USB2.0 port and camera .

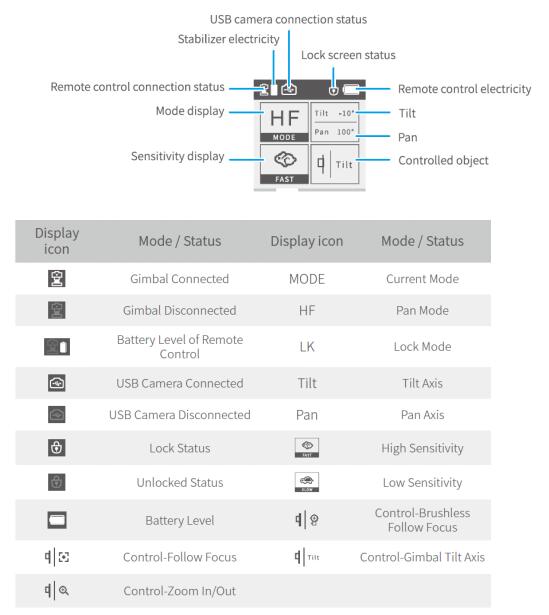

ICON on display
Standard accessories USB2.0 to Micro*1,USB3.0 to Micro3.0*1,USB2.0 to Mini*1, USB2.0 to USB C*1
USB C to Multi*1, USB C to DC2.5mm*1
Anti-slip tripod*1
Integrated quick release battery *1
Quick Release Plate*1
Arca Quick Release Plate *1
Lens holder*1
1/4inch to 3/8inch thread adapter *1
Optional accessories Wireless MIC kit, External follow focus.
Extendable Port QING：
USB-C port(Camera/MIC)、USB2.0 port (Camera)、UART1 USB2.0 port、UART2 USB2.0 port, 3/8inch thread hole(with standard adapter to get 1/4inch thread )
Remote Control：
Micro USB Port，1/4inch thread hole
Available functions for users Working with slider rail to take motion timelapse, working with tripod to take auto shooing for fixed position, remote control, 9 square panorama and auto panorama shooting.
Set up parameter, control sensitivity, motor power, control object, all the setting of timelaspse at touch screen.
One touch to connect QING and Remote Control, switch working mode and calibration the gimbal（When QING is not level or control properly）
Note：When pairing the remote control and QING, Please enter [Remote Match] menu firstly, and then power on QING to easily search the signals.
