Product Name Feiyu SCORP 3-Axis Camera Handheld Stabilizer
Battery Capacity 2500mAh, built-in battery cannot be removed, charge it via the USB-C port which below the multifunction knob,support all the normal charger and quick charger which charging power≤18W
Operating Voltage 6.8V-8.4V
Theoretical Battery Life 13h
Charging Time About 1.6h (Using 18W fast charger)
Materials In Main Body Synthetic macromolecular resin, aluminum alloy
Weight About 1200g/2.65 lb (including quick release plate, not included other accessories and camera)
Payload About 2.5kg/5.51 lb (well balanced)
Water-Proof Grade Not Water-proof

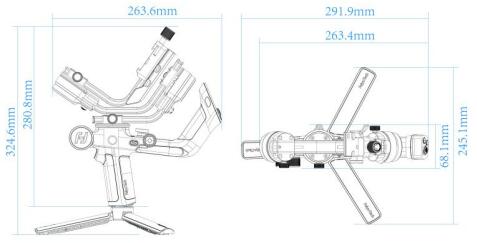

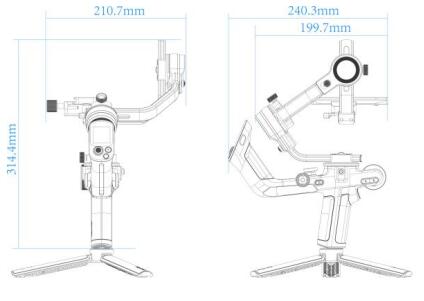

Dimensions 314.4*210.7*240.3mm(Gimbal balancing position)

280.8*263.6*68.1mm (Gimbal folded position)
Compatible Cameras Sony, Canon, Nikon, Panasonic camera etc (Check Camera Compatibility Lists for more details)
Operating Temperature -10~45℃
Rotatable Range Tilt: 320°(With limitation)
Roll: 320°(With limitation)
Pan: 360°(Unlimited)
Controllable Range Tilt: +110°~-45°
Roll: +20°~-20°
Pan: 360°(Unlimited)
Quick Release Plate Quick release plate (115x38x10mm) and optional camera backing base (50x38x10mm) are compatible with ARCA quick release system.
Can be removed from the gimbal together with the camera, and fast switch between popular quick release systems without re-assembling the camera.
Follow Mode
①PF: Pan follow, only the pan axis follows the movement of user's hand
②PTF: Pan and tilt follow, where both the pan and tilt axes follow the movement of user's hand, but roll axis does not
③FPV: Pan, tilt and roll follow, where all 3 axes follow the movement of user's hand
④Lock: All 3 axes do not follow the movement of user's hand, gimbal keeps the direction of the camera fixed
⑤FFW: flash follow, where all 3 axes follow the movement of user's hand in high follow speed
APP Feiyu SCORP
How To Control The Camera While connecting gimbal and cameras with cable (standard accessories for SONY, CANON, NIKON, Panasonic), users can control picture-taking/recording with shutter button and set aperture, shutter, ISO and other camera parameters (see Camera Compatibility List for more).
Motor Power Auto Tune Auto Tune motor power is available to the App or Touch Screen. Gimbal auto tune the motor power according to the camera you install.
Auto Tune operation: Enter the motor power setting through touch screen, and tap Auto Tune, then put gimbal on the table until the display prompt calibration complete.
Gimbal will vibrate slightly while Auto Tune to weigh the camera, it’s a normal phenomenon.
Extended Ports At the bottom of the handle: 1/4 inch thread hole*1, which can mount Tripod;
Below the multifunction knob: Type-C charging port*1;
In front of fixed plate: Type-C extension port*2 to connect focus motors;
At the back of fixed plate: Type-C camera control port*1, Type-C image transmission port*1;
In front of quick release plate: 1/4 inch thread hole*1, for installation of lens holder;
On the top of vertical cross arm: 1/4 inch thread hole*1, for installation of ARRI Rosettes Expansion Accessory;
Standard Accessories Feiyu SCORP*1
Data cable USB 2.0 to Type-C*1
Shutter cable Type-C to Micro (A03)*1
Shutter cable Type-C to Type-C (C02)*1
Shutter cable Type-C to TRS2.5 (T02)*1
Sony shutter cable Type-C to Multi*1
Panasonic shutter cable (DC2.5mm) Type-C to 2.5mm*1
Tripod*1
Quick release plate*1
Camera backing base*1
Lens holder*1
Lens holder screw*1
Camera fixed screw*3
Storage bag*1
Optional Accessories Monopod (Pay attention to its max payload);
Carbon Fiber Extension Rod;
Feiyu SCORP Focus Motor;
ARRI Rosettes Expansion Accessory;
Feiyu Portrait Quick Release Plate;
Feiyu SCORP Image Transmission Transmitter;
wireless microphone kit： wireless microphone ( transmitter terminal )*1、 wireless microphone (receiving terminal)*1，wireless clip-on microphone *1;
Body-mounted Weight Support for installing flash lamp/ soft light/ Microphone and other devices via cold shoes;
